MRP ₹1,620 Inclusive of all taxes
| # | Attribute | Value |
|---|---|---|
| 1. | Type | Electrical Wires |
| 2. | Insulation | [ "The bunched conductors are insulated with specially formulated grade of Halogen Free Flame Retardant (HFFR) compound is used. The insulation does not melt or drop in case of fire. The smoke emitted is transparent", "non-toxic and minimal. The victims trapped in the fire do not suffocate and evacuation is convenient" ] |
| 3. | Conductor | [ "The conductors", "drawn from bright electrolytic grade copper and annealed and bunched together." ] |
| 4. | Packing | 90 Meters (apprx.100 yards) pack in protective cartons |
| 5. | Application | [ "wires are best suited for wiring in hospitals", "hotels", "business establishments and high rise buildings where fire can be determined." ] |
| 6. | USP | HALOGEN FREE FLAME RETARNADT 700 C TEMP MAX OPERATING THERMOPLASTIC INSULATION RoHS COMPLIANT REACH COMPLIANT |
| 7. | brand | KEI |

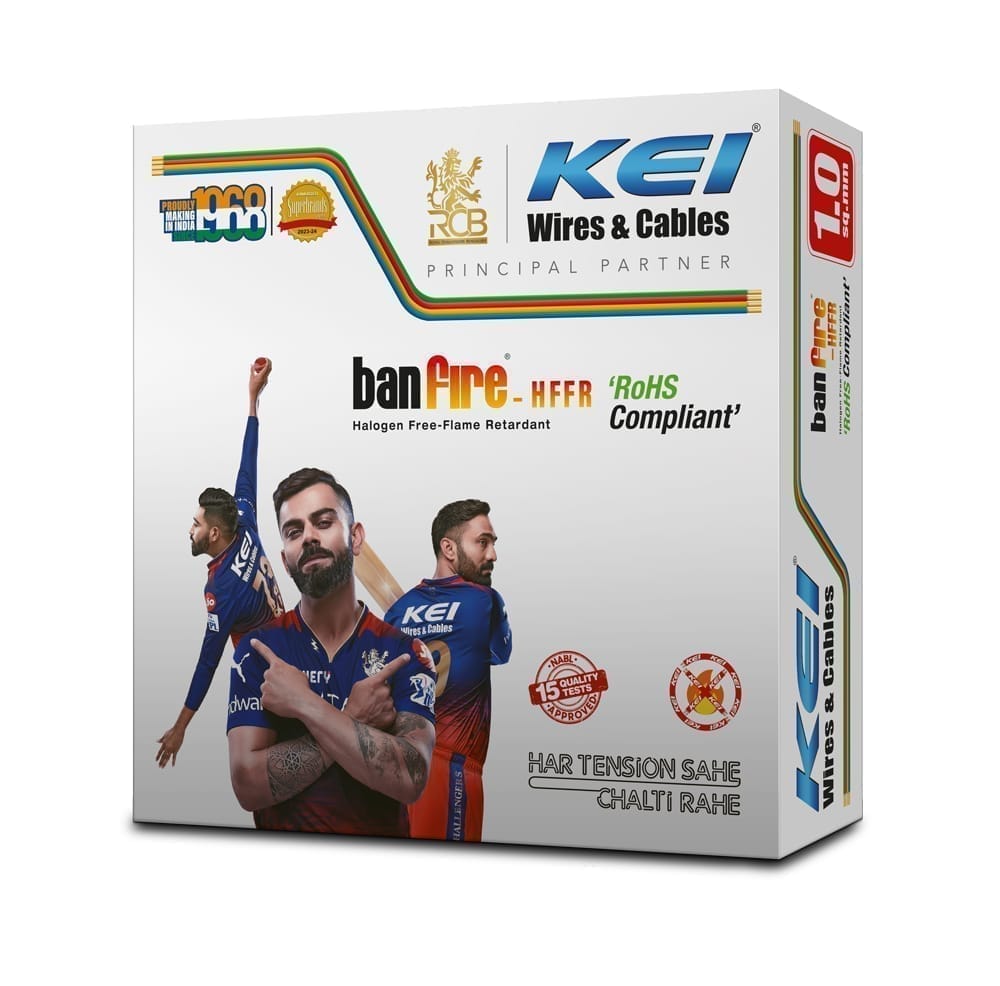

KEI Banfire is processed using a Halogen Free Flame Retardant compound (HFFR). The insulation is of superior quality, 100% PVC free and eco-friendly. In case of a fire situation, Banfire does not emit toxic or poisonous fumes, which enables safe evacuation. These wires are best suited for wiring in hospitals, hotels, business establishments and high rise buildings where fire can be determined. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.
|
Nominal Cross Sectional Area of Conductor(SQ. MM) |
Number/Nominal Dia of Wires [Nom.] | Thickness of Insulation [Nom.] (mm) | Overall Diameter Max. (mm) | Current Rating (Clipped Direct/Cable Tray) | Current Rating (Conduit/Trunking) | D.C Resistance [Max.] at 20°C (Ohm/km) |
|---|---|---|---|---|---|---|
| 0.75 | 24/0.2 | 0.6 | 2.8 | 7 | 8 | 26.0 |
| 1.00 | 32/0.2 | 0.6 | 3.0 | 12 | 13 | 19.5 |
| 1.50 | 30/0.25 | 0.6 | 3.4 | 14 | 17 | 13.3 |
| 2.50 | 50/0.25 | 0.7 | 4.1 | 19 | 23 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.8 | 25 | 31 | 4.95 |
| 6.00 | 84/0.3 | 0.8 | 5.3 | 33 | 39 | 3.30 |
*The number & diameter of conductor strands are for reference only and governed by conductor resistance.
*The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.
