MRP ₹1,130 Inclusive of all taxes
| # | Attribute | Value |
|---|---|---|
| 1. | Type | Electrical Wires |
| 2. | Insulation | [ "The bunched conductors are insulated with specially formulated FR PVC compound with a high insulation resistance value. The insulation process is carried out on modern high speed extrusion lines", "which ensures high accuracy and consistency in performance. Flame retardant properties enable the cable to withstand overloads. The insulation is resistant to boiling water", "steam and vapors. This prevents ageing and cracking in kitchens", "bathrooms", "damp walls and chemical industries" ] |
| 3. | Packing | 90 Meters (apprx.100 yards) pack in protective cartons. |
| 4. | Conductor | [ "The conductors", "drawn from bright electrolytic grade copper and annealed and bunched together" ] |
| 5. | Application | [ "specially formulated insulation with a high oxygen and Lead Free & temperature index", "enabling the wire to withstand overloads preventing electric mishaps" ] |
| 6. | USP | FLAME RETARDANT LEAD FREE RoHS COMPLIANT REACH COMPLIANT ANTI RODENT & TERMITE |
| 7. | Critical Oxygen Index (Tested) | Minimum 29% |
| 8. | Temperature Index (Tested) | Minimum 250 °C |
| 9. | brand | KEI |

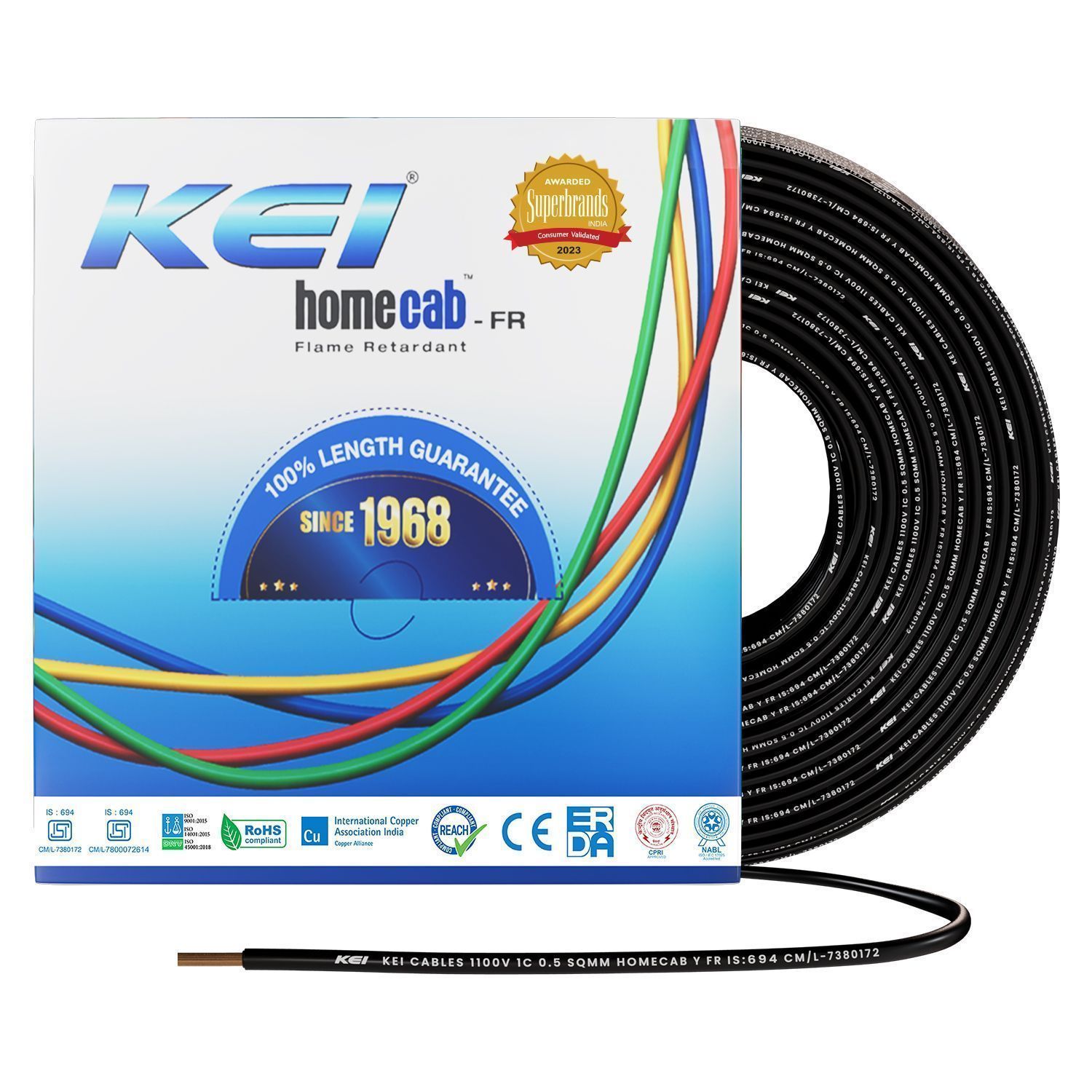

HomeCab is a multi-stranded flexible wire with flame retardant properties. It has specially formulated insulation with a high oxygen and Lead Free & temperature index, enabling the wire to withstand overloads preventing electric mishaps. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.
| Nominal Cross Sectional Area of Conductor(SQ. MM) | Number/Nominal Dia of Wires [Nom.] | Thickness of Insulation [Nom.] (mm) | Overall Diameter Max. (mm) | Current Rating (amps) | Ohm/km | |
|---|---|---|---|---|---|---|
| Clipped Direct/Cable Tray | Conduit/Trunking | |||||
| 0.5 | 16/0.2 | 0.6 | 2.6 | 4 | 4 | 39.0 |
| 0.75 | 24/0.2 | 0.6 | 2.8 | 7 | 8 | 26.0 |
| 1.00 | 32/0.2 | 0.6 | 3.0 | 12 | 13 | 19.5 |
| 1.50 | 30/0.25 | 0.6 | 3.4 | 14 | 17 | 13.3 |
| 2.50 | 50/0.25 | 0.7 | 4.1 | 19 | 23 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.8 | 25 | 31 | 4.95 |
| 6.00 | 84/0.3 | 0.8 | 5.3 | 33 | 39 | 3.30 |
*The number & diameter of conductor strands are for reference only and governed by conductor resistance.
*The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.
