MRP ₹1,600 Inclusive of all taxes
| # | Attribute | Value |
|---|---|---|
| 1. | Type | Electrical Wires |
| 2. | Insulation | [ "The bunched conductors are insulated with specially formulated Heat Resistance Flame Retardant Low Smoke & Halogen Compound. During a fire situation", "the FR-LSH compound restricts the spread of flame. The smoke emission is also minimal." ] |

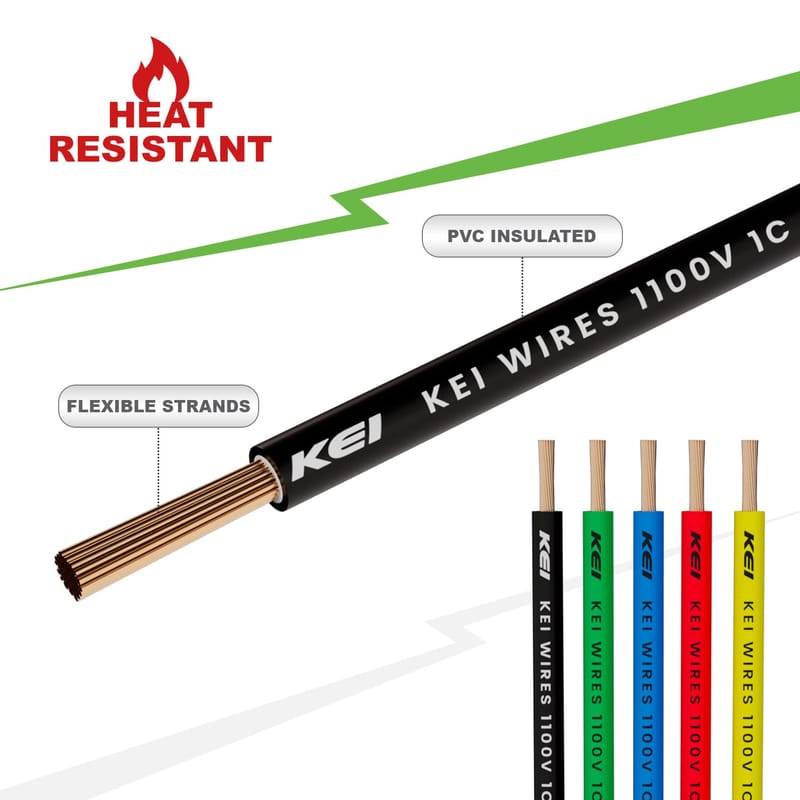

| 3. | Conductor | [ "The conductors", "drawn from bright electrolytic grade copper and annealed and bunched together." ] |
| 4. | Packing | 90 Meters (apprx.100 yards) pack in protective cartons. |
| 5. | Application | [ "multi-storied buildings", "hotels", "hospitals", "commercial establishments and residential complexes." ] |
| 6. | USP | FLAME RETARDANT LOW SMOKE & HALOGEN PVC INSULATED SINGLE CORE UNS HEATHED COPPER CABLES (UP TO 1100 VOLTS AC) |
| 7. | Acid Gas Generation (Tested) | Maximum 20% |
| 8. | Critical Oxygen Index (Tested) | Minimum 31% |
| 9. | Smoke Density Rating (Tested) | Maximum 60% |
| 10. | Temperature Index (Tested) | Minimum 250 °C |
| 11. | brand | KEI |

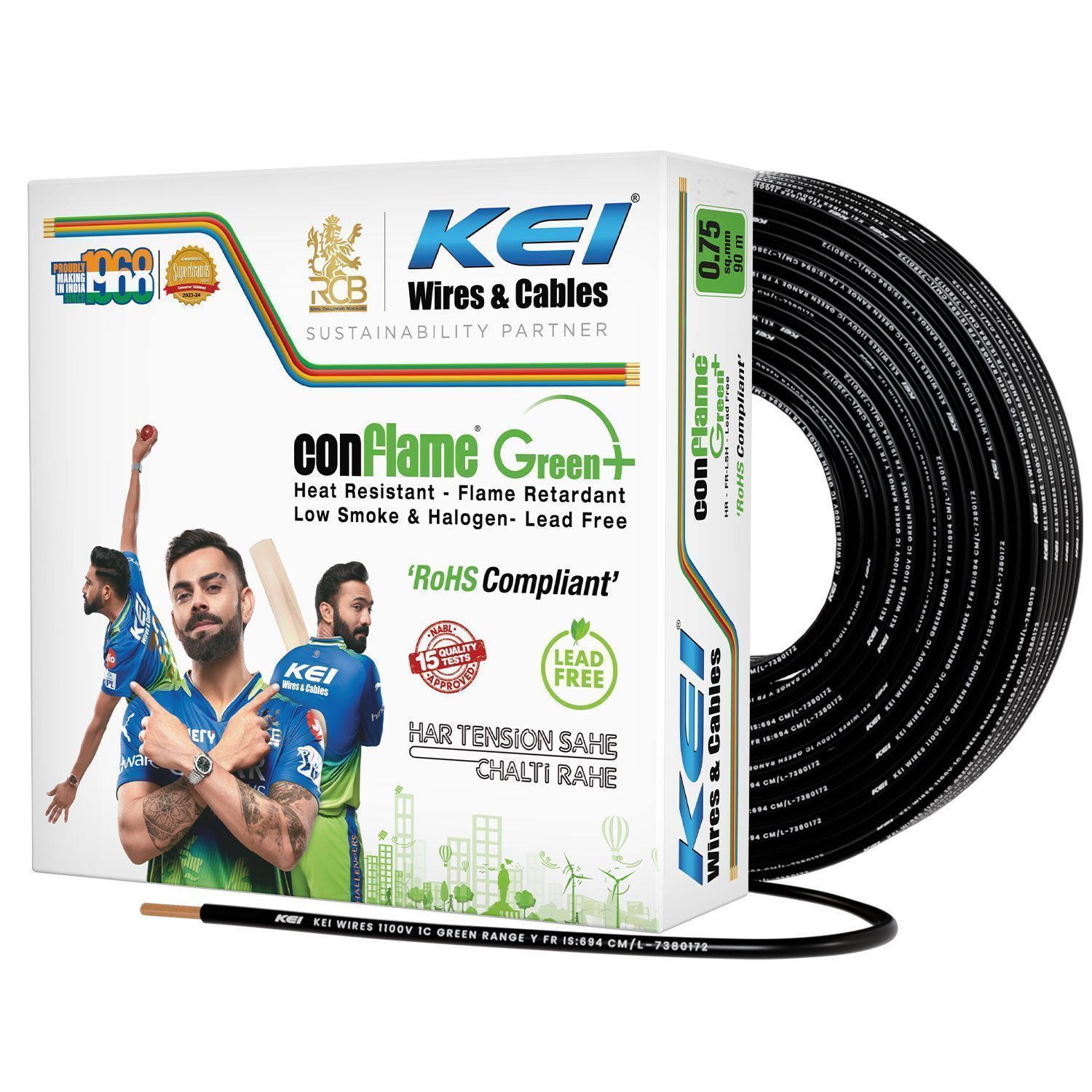

KEI s innovative offering Conflame Green+ is ideal for wiring solutions in multi-storied buildings, hotels, hospitals, commercial establishments and residential complexes. It is shielded by a specially formulated Heat Resistance flame retardant PVC compound. Conflame Green+ wire is made of sustainable material (RoHS & REACH compliant) and is lead-free, which makes it ECO-friendly. Even its packaging is made with recycled material, which is Bio-degradable. Conflame Green+ insulation retards spread of fire and emits minimum smoke and toxic gases, making it absolutely safe for both inside house and outside environment. So, give yourself the promise of security and supreme quality. Get KEI house wires and safeguard your home for life.
| Nominal Cross Sectional Area of Conductor(SQ. MM) | Number/Nominal Dia of Wires [Nom.] | Thickness of Insulation [Nom.] (mm) | Overall Diameter Max. (mm) | Current Rating (amps) | D.C Resistance [Max.] at 20°C (Ohm/km) | |
|---|---|---|---|---|---|---|
| Clipped Direct/Cable Tray | Conduit/Trunking | |||||
| 0.75 | 24/0.2 | 0.6 | 2.8 | 9 | 10 | 26.0 |
| 1.00 | 32/0.2 | 0.6 | 3.0 | 14 | 16 | 19.5 |
| 1.50 | 30/0.25 | 0.6 | 3.4 | 17 | 21 | 13.3 |
| 2.50 | 50/0.25 | 0.7 | 4.1 | 23 | 28 | 7.98 |
| 4.00 | 56/0.3 | 0.8 | 4.8 | 31 | 38 | 4.95 |
| 6.00 | 84/0.3 | 0.8 | 5.3 | 40 | 48 | 3.30 |
*The number & diameter of conductor strands are for reference only and governed by conductor resistance.
*The above data is indicative only and may be revised without prior information. KEI will not be responsible for any damages arising out of incorrect application of its product.
